Deepcool AS500 PLUS CPU Air Cooler
- Single tower cooler with 5 heat pipes high fin density.
- Slim profile for maximum RAM height compatibility.
- High-performance TF140S PWM fans included.
- A-RGB LED controller included.
- Description
- Reviews (0)
Description

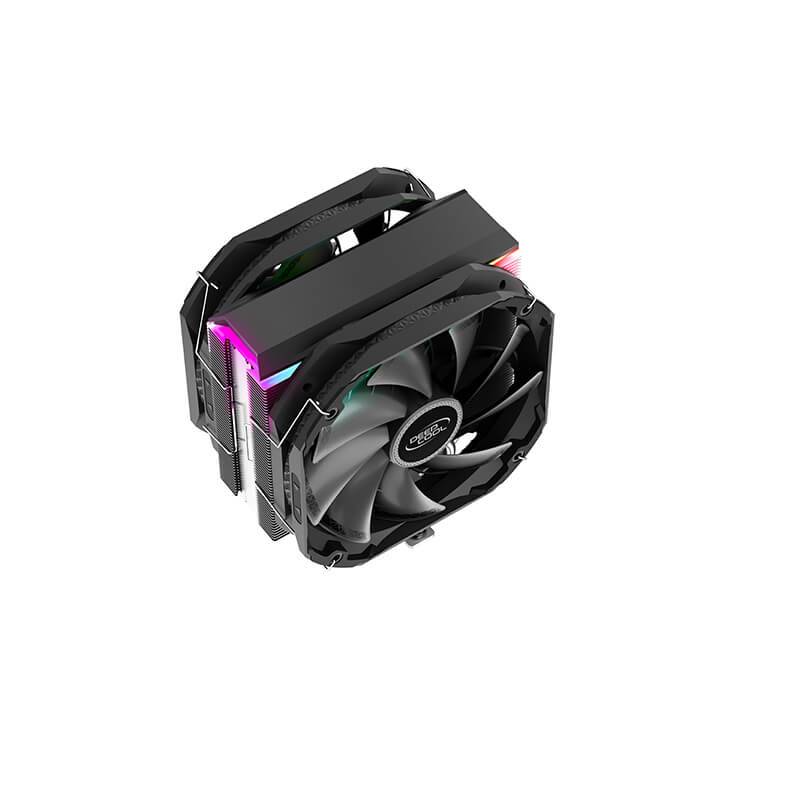

Deepcool AS500 PLUS CPU Air Cooler
The DeepCool AS500 PLUS single tower CPU cooler boasts a five heat pipe design with two TF140S PWM fans for great performance in a slim profile.
ELEVATED COOLING PERFORMANCE

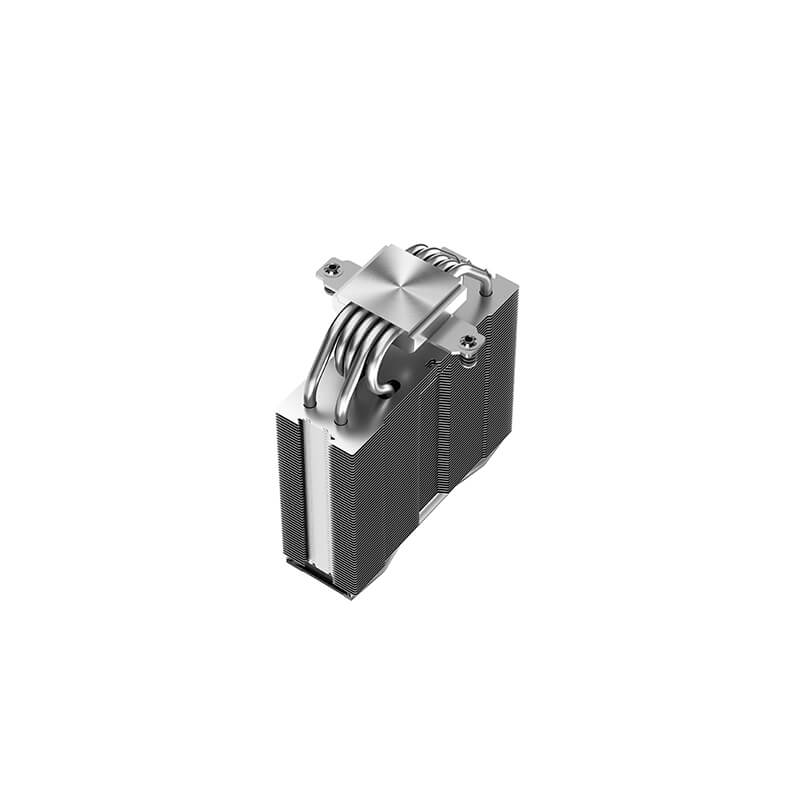

Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT
Designed for maximum RAM height compatibility in a slim (48mm) profile.
CONTROL YOUR TEMPS
The high-performance TF140S PWM fans provide precise control between extreme cooling or low-noise operation with long-life durability.
500~1200 RPM±10%
Wide Speed Range
70.81 CFM
Ultra Airflow
A-RGB LED CONTROLLER
An included wire controller allows for a quick and easy way to adjust lighting effects without installing additional software.Appropriate A-RGB connector cables for motherboard control are also provided.
Application For
Intel LGA2066/2011-v3/2011/1200/1151/1150/1155
AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
| Product Dimensions | 142×102×164 mm |
| Heatsink Dimensions | 140×49×159 mm |
| Net Weight | 1198 g |
| Heatpipe | Ø6 mm×5 pcs |
| Fan Dimensions | 140×140×25 mm |
| Fan Speed | 500~1200 RPM±10% |
| Fan Airflow | 70.81 CFM |
| Fan Air Pressure | 1.14 mmAq |
| Fan Noise | ≤29.2dB(A) |
| Overall Noise | ≤31.5 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.11 A |
| Fan Power Consumption | 1.32 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.4 W |
| EAN | 6933412727071 |
| P/N | R-AS500-BKNLMP-G |
